Identification 15 Difference Color Mark Sensor IP65 RGB 4 Channel Color Detection Sensor

Brand Name : BOJKE

Model Number : BS-801

Certification : CE

Place of Origin : Dongguan China

MOQ : 1pcs

Price : $120

Payment Terms : T/T

Supply Ability : 150k

Delivery Time : 5~8 work days

Packaging Details : kraft box with carton box;

Name : Color Mark Sensor

Power supply : DC 12~24V

Output : NPN or 4 cPNP channel

Light source : RGB 3 color

Response time : less than 130us

Frequency : 1000Hz

Protection level : IP65

Contact Now

Identification 15 Difference Colors Mark Sensor RGB 4 Channel Detection Distinguishes Color Sensor

Product Name Color sensor
Material PBT case
Function color detection and recognition

Identification 15 Difference Color Mark Sensor IP65 RGB 4 Channel Color Detection Sensor

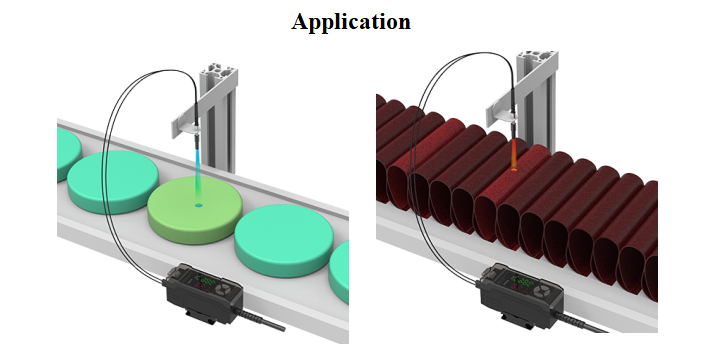

A color sensor is a sensor that can detect and recognize colors, widely used in fields such as industrial automation robotics and smart homes. It determines color by measuring the light reflected from the surface of an object and typically includes components such as a light source, a receiver, and a signal processing unit.

Model # BS-801
Output mode: NPN open collector model, 4 channels output
Detection distance: 18~28 mm
Supply Voltage: 12~24 DC ± 10%
Consumption(no-load) current ≤ 20mA
Light source: red/green/blue 4-element LED
Detection mode mark mode and color mode switchable
Response time: < 130μs
Response frequency: 1000Hz
Input current: < 100mA
Residue voltage: <1.0V
Switch mode L. On (light input operation)/D. on (shading operation) can be switched
Ambient illumination: incandescent lamp ≤3000Lux sunlight ≤10,000Lux
Ambient temperature operation:-10℃~ 55℃ , storage:-25℃~ 75℃ No freezing
Ambient humidity: operation:35%~85% RH, storage:35%~95% RH ,No coagulating
Circuit protection reverse polarity protection, short circuit protection, surge protection.
Protection degree: IP65
Connection cable: 2 meter/6 core cable
Housing material: PBT
Withstand voltage AC 500V, 50/60Hz, 1 min.
Vibrate resistance: 10-55Hz ,complex amplitude 1.5mm, X.Y.Z direction each 2 times
Impact resistance: 500m/s²,X,Y,Z direction each 10 times.
Insulation impedance >20MΩ (DC 500V megger)
